| MODEL | Bearing Type | Rated Voltage | Operating Voltage Range | Rated Current | Rated Power | Speed | Air Flow | Air Pressure | Acoustic Noise | Life expectancy | |||
| PART NO. |
SIGNAL |
B.T.S.R |
VDC |
VDC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |
| BAAA0915R_5U | -FG / RD | B | 12 | 7.0 to 13.2 | 0.94 | 4.70 | 4000 | 0.46 | 16.3 | 25.0 | 0.98 | 52 | 70000 |

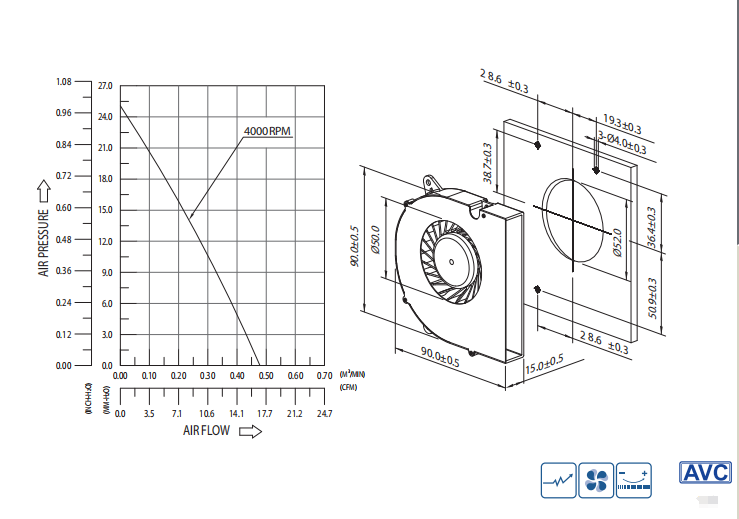

| Product P&Q Curve Dimension Drawing | |||||||||||||
 |
|||||||||||||
