| MODEL | Bearing Type | Rated Voltage | Operating Voltage Range | Rated Current | Rated Power | Speed | Air Flow | Air Pressure | Acoustic Noise | Life expectancy | |||
| PART NO. |
SIGNAL |
B.T.S.R |
VDC |
VDC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |
| DAPA1290B8FY | -FG / RD | B | 53 | 36 to 60 | 10.7 | 567.1 | 17000 | 15.13 | 534.26 | 345.47 | 13.60 | 83 | 70000 |

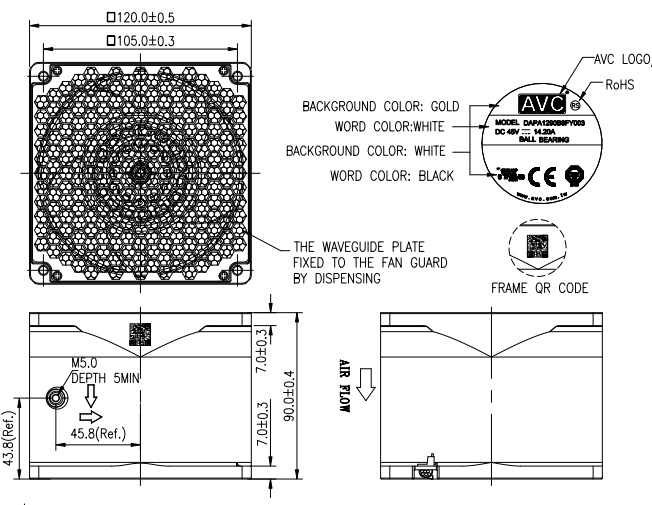

| Dimension Drawing | |||||||||||||

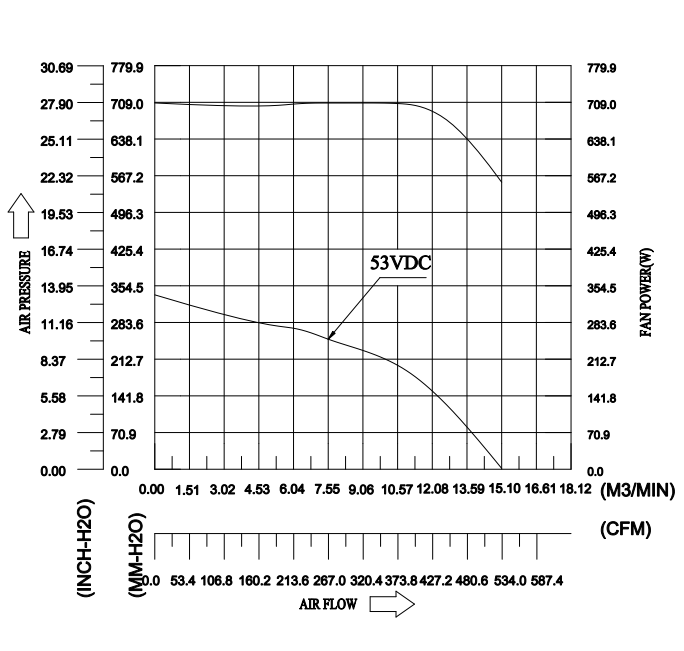

 PQ Curve  |
|||||||||||||
