| MODEL | Bearing Type | Rated Voltage | Operating Voltage | Current | Input Power | Speed | Air Flow | Air Pressure | Acoustic Noise | Life expectancy | |||
| PART NO. | SIGNAL |
B.T.S.R |
VDC |
VDC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |
| DATC1551_8U | -FG / RD | B | 48 | 36 to 53 | 2.6 | 124.8 | 7200 | 14.212 | 501.84 | 86.75 | 3.415 | 76.0 | 70000 |
|

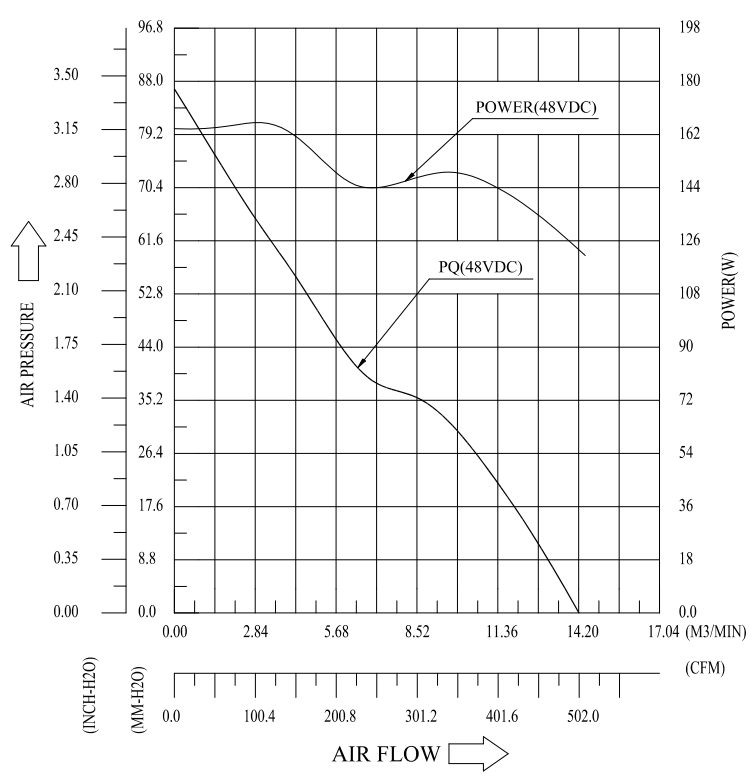

Product P&Q Curve P&Q 曲线图 |
|||||||||||||
