| MODEL | Bearing Type | Rated Voltage | Operating Voltage | Current | Input Power | Speed | Air Flow | Air Pressure | Acoustic Noise | Life expectancy | |||
| PART NO. |
SIGNAL |
B.T.S.R |
VDC |
VDC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |

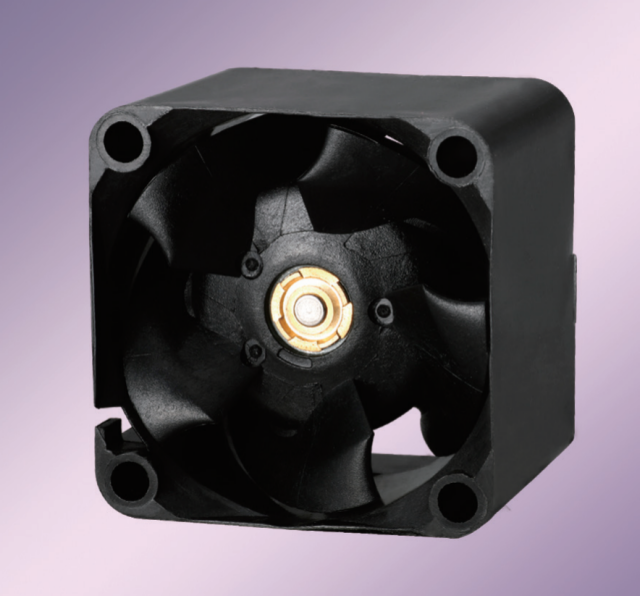

| DB03628_12S |
-FG / RD |
B |
12 |
7.0 to 13.2 |
0.66 | 7.92 | 19000 | 0.560 | 19.75 | 53.25 | 2.096 | 58.0 | 110000 |

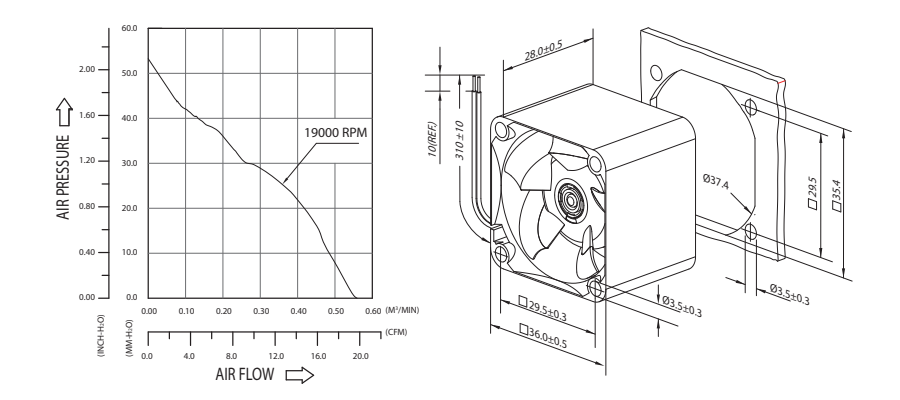

| Product P&Q Curve Dimension Drawing | |||||||||||||
|
|
|||||||||||||
