| MODEL | Bearing Type | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Acoustic Noise | Life expectancy | |||
| PART NO. |
SIGNAL |
B.T.S.R |
VDC |
VDC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |
| DBPE0638_8L | -FG / RD | B | 48 | 36 to 75.0 | 0.16 | 7.68 | 10500 | 1.203 | 42.50 | 35.91 | 1.414 | 55.1 | 110000 |
| DBPE0638_8M | -FG / RD | B | 48 | 36 to 75.0 | 0.21 | 10.08 | 12000 | 1.366 | 48.24 | 46.64 | 1.836 | 58.0 | 90000 |
| DBPE0638_8H | -FG / RD | B | 48 | 36 to 75.0 | 0.26 | 12.48 | 13500 | 1.537 | 54.29 | 58.03 | 2.285 | 60.6 | 70000 |
| DBPE0638_8U | -FG / RD | B | 48 | 36 to 75.0 | 0.36 | 17.28 | 15000 | 1.715 | 60.56 | 71.19 | 2.803 | 62.9 | 70000 |
| DBPE0638_8S | -FG / RD | B | 48 | 36 to 75.0 | 0.73 | 35.04 | 19000 | 2.205 | 74.24 | 106.58 | 4.196 | 68.0 | 70000 |

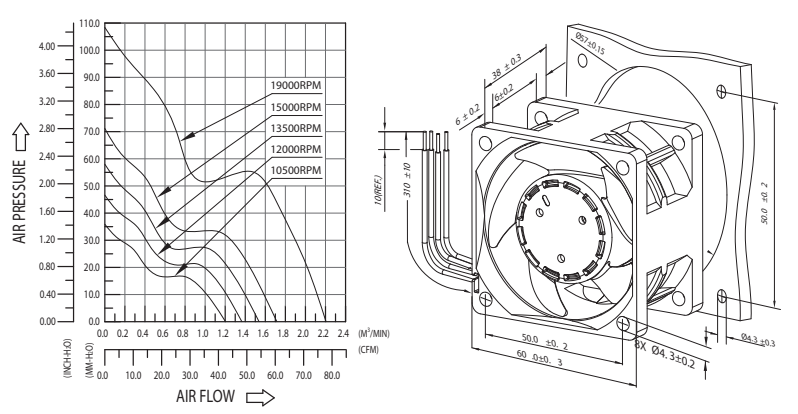

| Product P&Q Curve Dimension Drawing |
|||||||||||||
|
|
|||||||||||||
