| MODEL | Bearing Type | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Acoustic Noise | Life expectancy | |||
| PART NO. |
SIGNAL |
B.T.S.R |
VDC |
VDC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |
| DBPF0638_2U | -FG / RD | B | 12 | 10.8 to 13.2 | 2.56 | 30.72 | 20300 | 1.962 | 69.27 | 131.85 | 5.191 | 72.3 | 70000 |

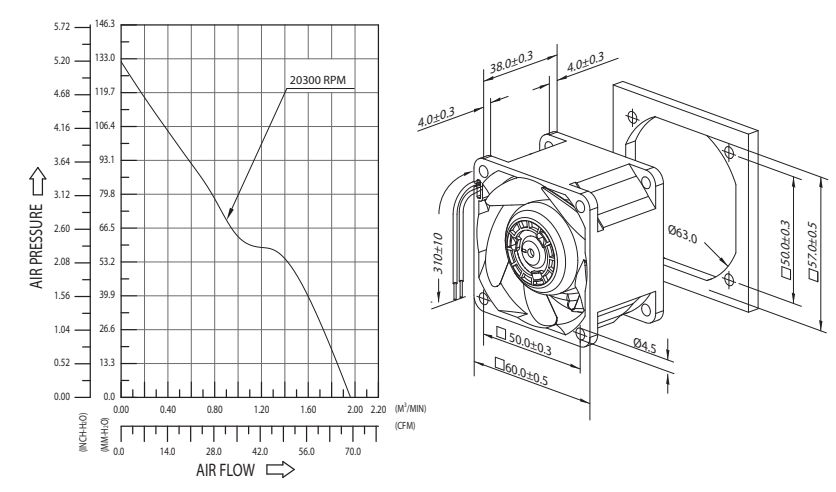

| Product P&Q Curve Dimension Drawing |
|||||||||||||
|
|
|||||||||||||
