| MODEL | Bearing Type | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Acoustic Noise | Life expectancy | |||
| PART NO. |
SIGNAL |
B.T.S.R |
VDC |
VDC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |
| DBPL0638_2U | -FG / RD | B | 12 | 7.0 to 13.2 | 1.48 | 17.76 | 18200 | 1.662 | 58.7 | 92.2 | 3.63 | 64.0 | 70000 |

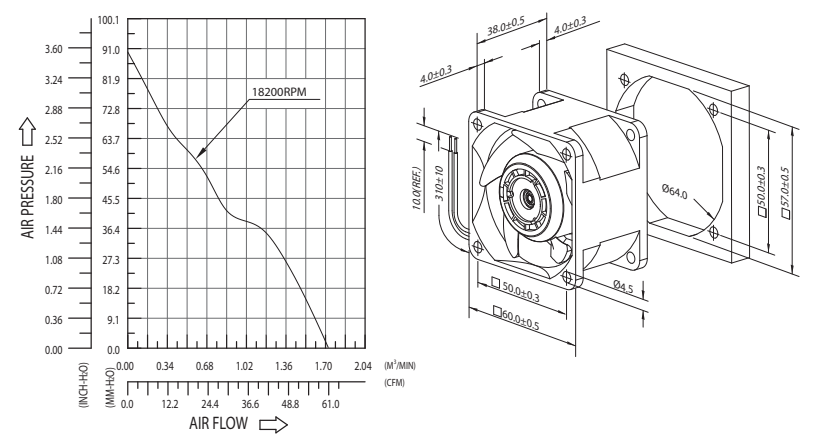

| Product P&Q Curve Dimension Drawing |
|||||||||||||
|
|
|||||||||||||
