| MODEL | Bearing Type | Rated Voltage | Operating Voltage | Current | Input Power | Speed | Air Flow | Air Pressure | Acoustic Noise | Life expectancy | |||
| PART NO. | SIGNAL |
B.T.S.R |
VDC |
VDC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |
| DBPT0838_2U | -FG / RD | B | 24 | 18 to 26 | 1.0 | 24.0 | 10000 | 3.98 | 140.7 | 51.5 | 505.2 | 62.0 | 70000 |
|

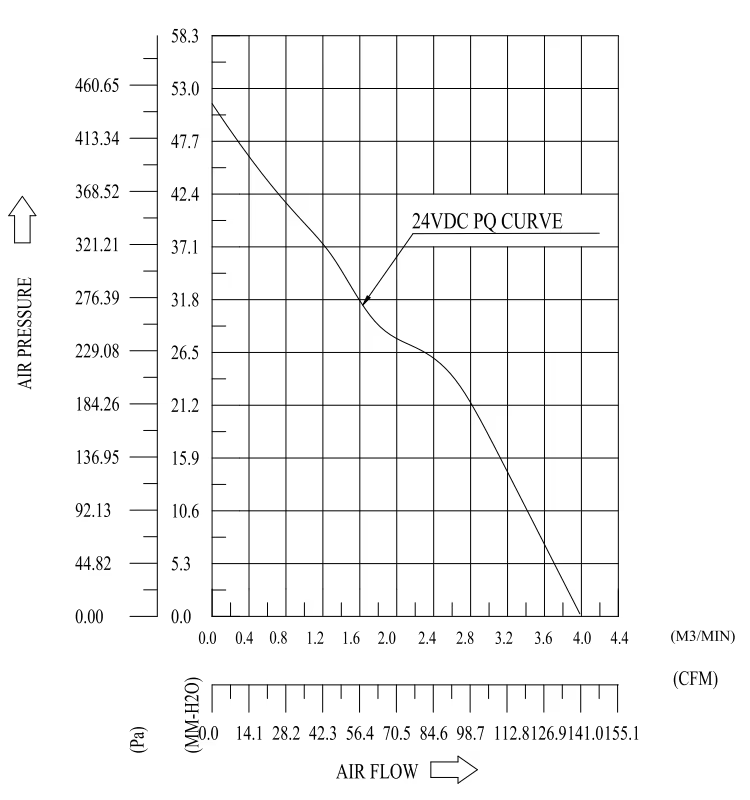

Product P&Q Curve P&Q 曲线图 |
|||||||||||||
