| MODEL | Bearing Type | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Acoustic Noise | Life expectancy | |||
| PART NO. |
SIGNAL |
B.T.S.R |
VDC |
VDC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |
| DBTA0420B_2E | -FG / RD | B | 12 | 7.0 to 13.2 | 0.08 | 0.96 | 8000 | 0.267 | 9.43 | 8.92 | 0.351 | 32.9 | 70000 |
| DBTA0420B_2L | -FG / RD | B | 12 | 7.0 to 13.2 | 0.11 | 1.32 | 10000 | 0.332 | 11.73 | 13.96 | 0.549 | 40.0 | 70000 |
| DBTA0420B_2M |
-FG / RD |
B |
12 | 7.0 to 13.2 | 0.17 |
2.0 |
12000 |
0.405 |
14.31 |
20.06 |
0.789 |
44.3 |
70000 |
| DBTA0420B_2H |
-FG / RD | B | 12 | 7.0 to 13.2 | 0.25 |
3.00 |
14000 |
0.476 |
16.82 |
27.34 |
1.073 |
48.9 |
70000 |
| DBTA0420B_2U |
-FG / RD | B | 12 | 7.0 to 13.2 | 0.41 |
4.92 |
16000 |
0.561 |
19.82 |
36.55 |
1.438 |
52.9 |
70000 |

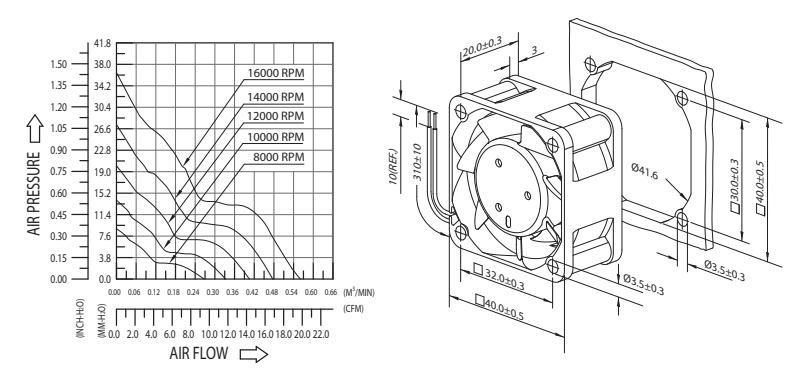

| Product P&Q Curve Dimension Drawing | |||||||||||||
|
|
|||||||||||||
