| MODEL | Bearing Type | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Acoustic Noise | Life expectancy | |||
| PART NO. | SIGNAL |
B.T.S.R |
VDC |
VDC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |

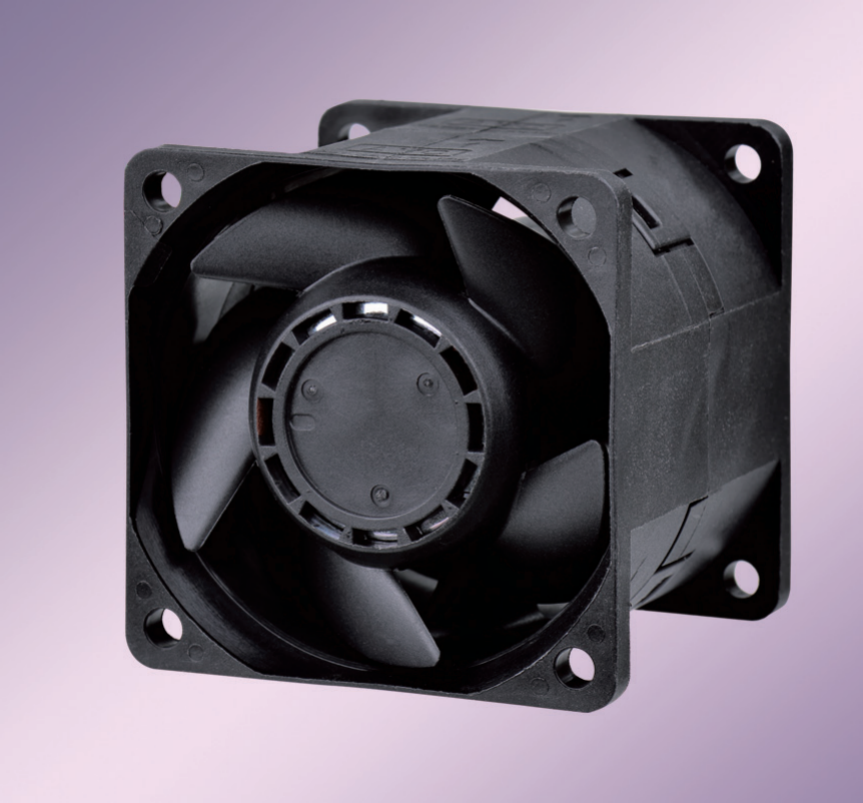

| DFPB0656_2U | -FG / RD | B | 12 | 10.8 to 13.2 | 2.0 | 22.3 | 14800/15700 | 1.633 | 57.66 | 108.08 | 4.255 | 78.0 | 70000 |
| DFPB0656_2S | -FG / RD | B | 12 | 10.8 to 13.2 | 2.8 |
28.8 | 16400/17400 | 1.850 | 65.34 | 130.41 | 5.134 | 80.5 | 70000 |
| DFPB0656_2G |
-FG / RD | B | 12 | 10.8 to 13.2 | 3.0 | 36.0 |
16800/15400 |
2.097 |
74.06 |
97.95 |
3.856 |
86.0 |
70000 |
| Product P&Q Curve Dimension Drawing | |||||||||||||
|
|
|||||||||||||
