| MODEL | Bearing Type | Rated Voltage | Voltage Range | Current | Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Acoustic Noise | Life expectancy | |||
| PART NO. |
SIGNAL |
B.T.S.R |
VDC |
V PAR DC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |

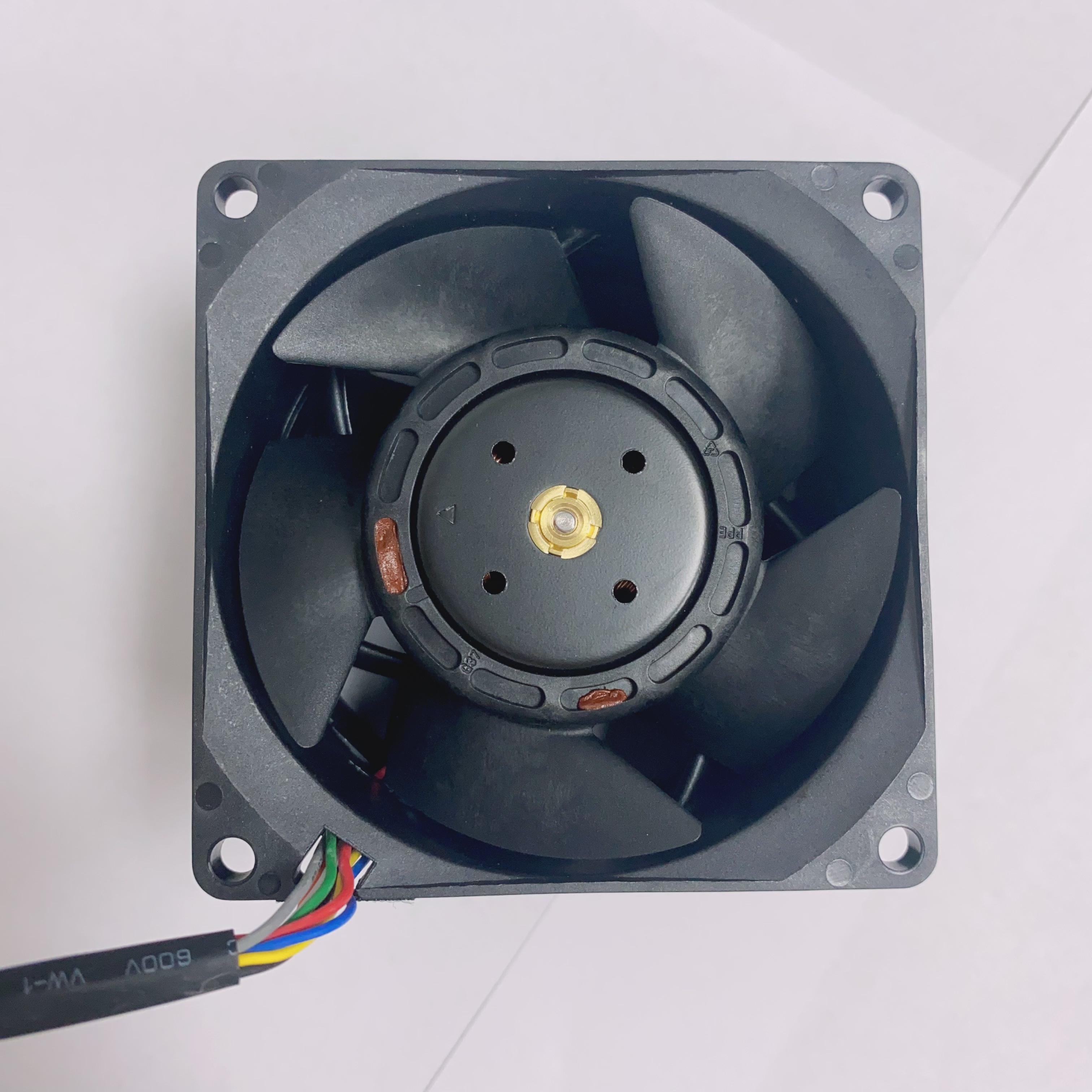

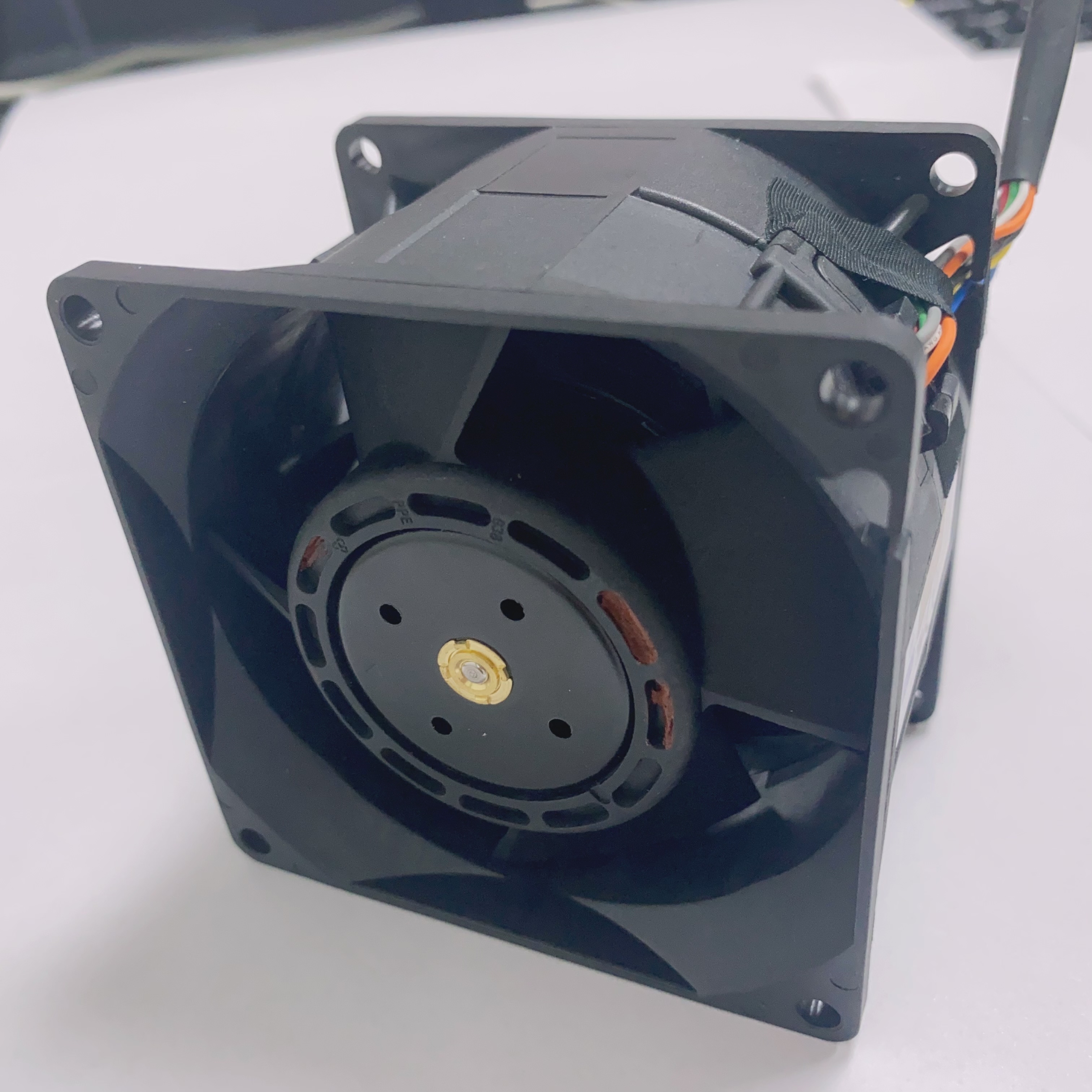

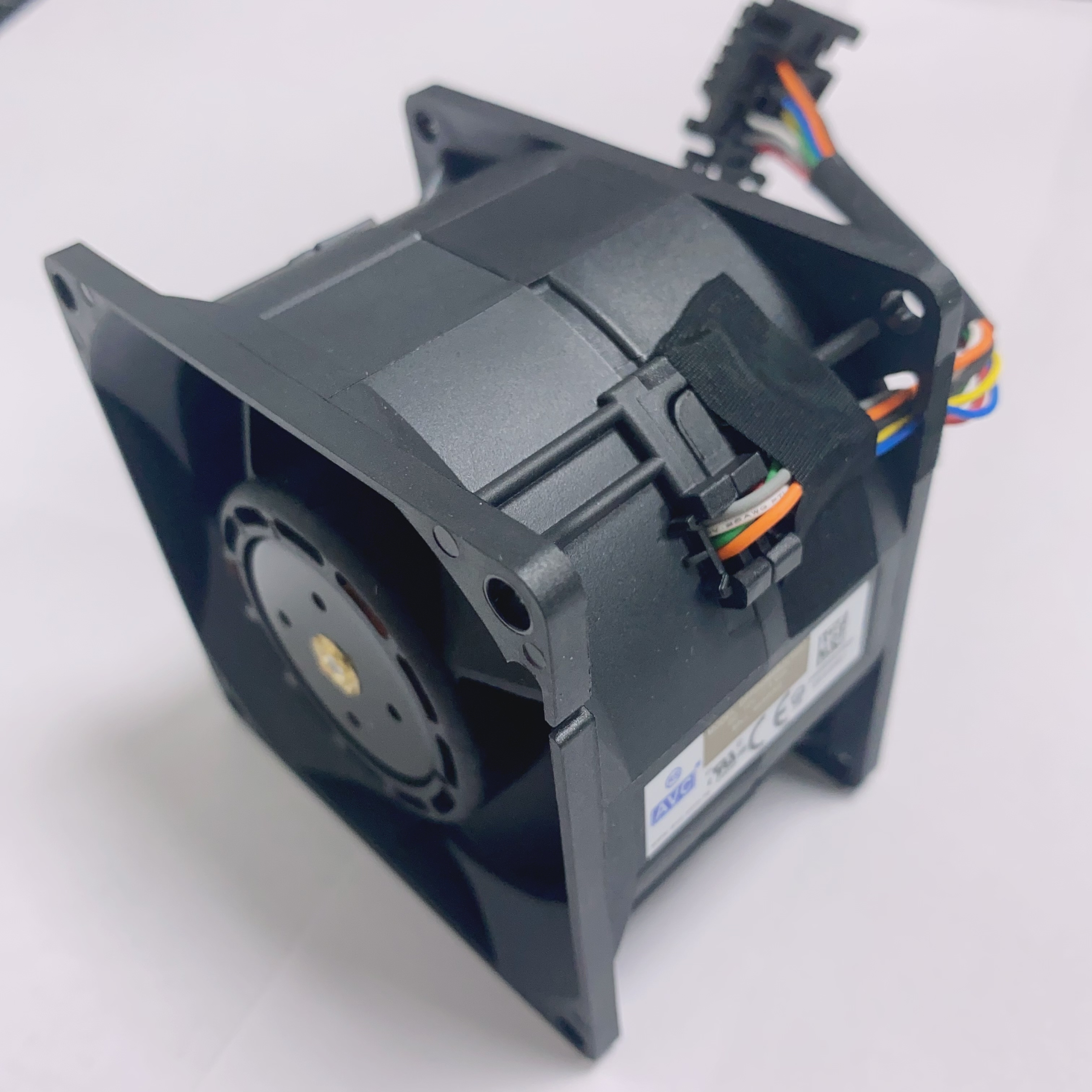

| DFPD0856_2U | -FG / RD | B | 12 | 7.0 to 13.2 | 4.7 | 56.4 | inlet:17000 / outlet:14500 | 3.679 | 130.0 | 170.0 | 6.692 | 78.0 | 70000 |
| Product P&Q Curve | |||||||||||||
 Dimension Drawing  |
|||||||||||||
