| MODEL | Bearing Type | Rated Voltage | Operating Voltage Range | Current | Input Power | Speed | Air Flow | Air Pressure | Acoustic Noise | Life expectancy | |||
| PART NO. |
SIGNAL |
B.T.S.R |
VDC |
VDC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |

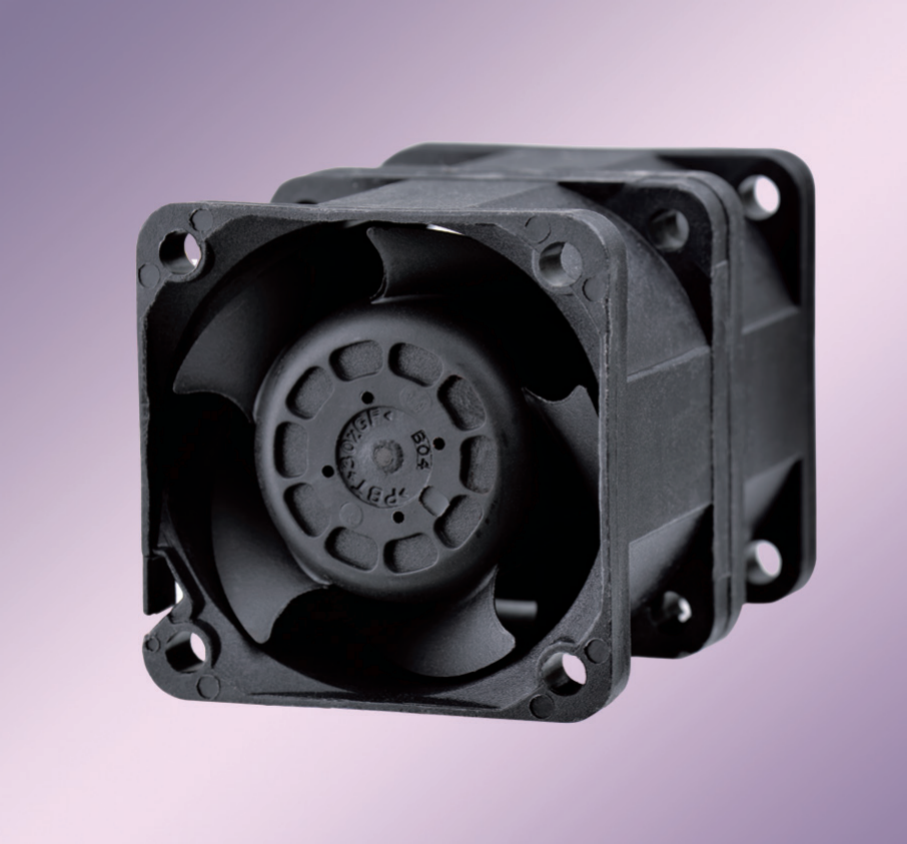

| DFPH0456_2U | -FG / RD | B | 12 | 7.0 to 13.2 | 2.30 | 27.60 | 22500/19500 | 0.721 | 25.45 | 76.50 | 3.012 | 56.2 | 70000 |

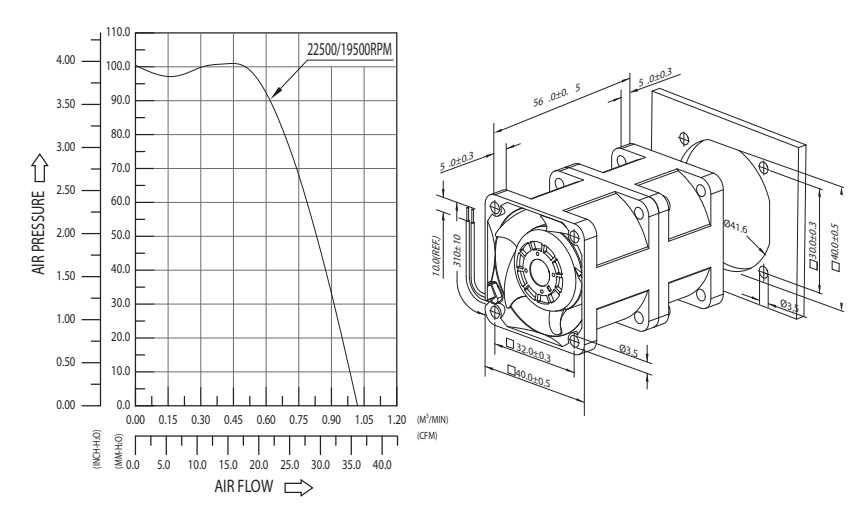

| Product P&Q Curve Dimension Drawing | |||||||||||||
|
|
|||||||||||||
