| MODEL | Bearing Type | Rated Voltage | Operating Voltage | Current | Input Power | Speed | Air Flow | Air Pressure | Acoustic Noise | Life expectancy | |||
| PART NO. | SIGNAL |
B.T.S.R |
VDC |
VDC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |
| DFPH0880_2U | -FG / RD | B | 12 | 7 to 13.2 | 16 | 192 | 15000 | 5.991 | 211.72 | 173.89 | 6.849 | 70.0 | 70000 |
| DFPH0880_8S | -FG / RD | B | 48 | 36 to 72 | 3.45 | 165.88 | 15300 | 5.735 | 203.0 | 190.90 | 7.515 | 78.0 | 7000 |
|

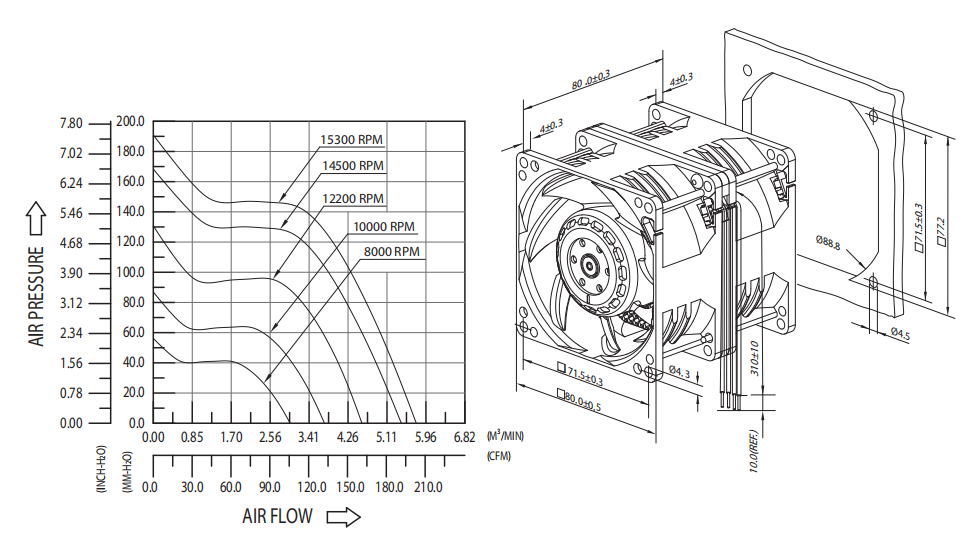

Product P&Q Curve Dimension Drawing P&Q 曲线图 尺寸图 |
|||||||||||||
