| MODEL | Bearing Type | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Acoustic Noise | Life expectancy | |||
| PART NO. |
SIGNAL |
B.T.S.R |
VDC |
VDC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |
| DS05020_12L | -FG/RD | B R | 12 | 7.0 to 13.2 | 0.15 | 1.80 | 3000 | 0.263 | 9.28 | 1.93 | 0.076 | 19.2 | 70000 |
| DS05020_12M | -FG/RD | B R | 12 | 5.0 to 13.2 | 0.20 | 2040 | 4000 | 0.341 | 12.04 | 3.30 | 0.130 | 25.7 | 70000 |
| DS05020_12H | -FG/RD | B R | 12 | 5.0 to 13.2 | 0.25 | 3.00 | 5000 | 0.417 | 14.74 | 5.12 | 0.202 | 32.3 | 70000 |
| DS05020_12U | -FG/RD | B R | 12 | 5.0 to 13.2 | 0.30 | 3.60 | 6000 | 0.536 | 18.94 | 6.95 | 0.274 | 37.8 | 70000 |
| DS05020_12S |
-FG/RD | B | 12 | 5.0 to 13.2 | 0.40 |
4.80 |
7000 |
0.605 |
21.38 |
9.63 |
0.379 |
41.5 |
70000 |
| DS05020_24U |
-FG/RD | R | 12 | 10.0 to 26.4 | 0.30 |
7.30 |
6000 |
0.536 |
18.94 |
6.95 |
0.274 |
37.8 |
70000 |

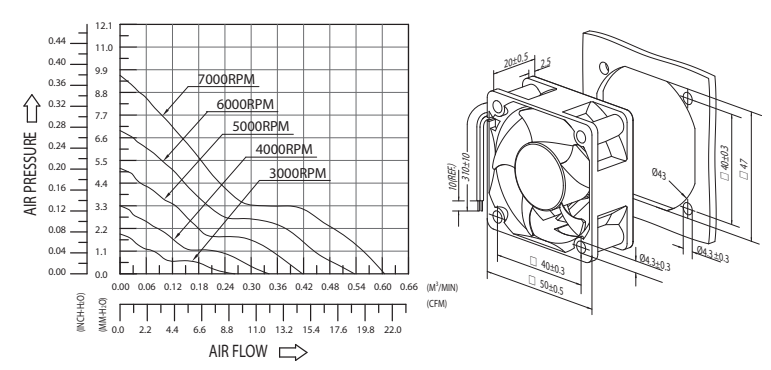

| Product P&Q Curve Dimension Drawing | |||||||||||||
|
|
|||||||||||||
