* Size: 120x120x38mm
* Frame Material: die-cast allumium , Blade material: Thermoplastic(UL 94V-0)
* PVC Lead Wires: UL 2517 AWG #22
* Cable Length: 610mm ( waterproof , as shown in the pictures)
* Impeller: 7 Blades
* Rotational direction CCW view from front face
* Weight: 500g (10.58 OZ)
AVC 12038 IP68 waterproof (glue filling technology) two ball bearing 24VDC 120x120x38 AVC axial fan cooler for High power inverters
Rated voltage: 24V (optional)
Operating voltage: 19.0 V~30 V
Rated current: 2.5 A
Rated power: 57.6 W
Fan speed: 8100±10%R.P.M
Signal output: PWM/-FG
Maximum air volume:7.544 m3/Min (266.42 CFM)
Maximum wind pressure: 70.48 mmH2O (2.719 inchH2O)
Acoustic noise level: 71 dB-A
Life expectancy (L10@ 40 degree): 125000 Hours

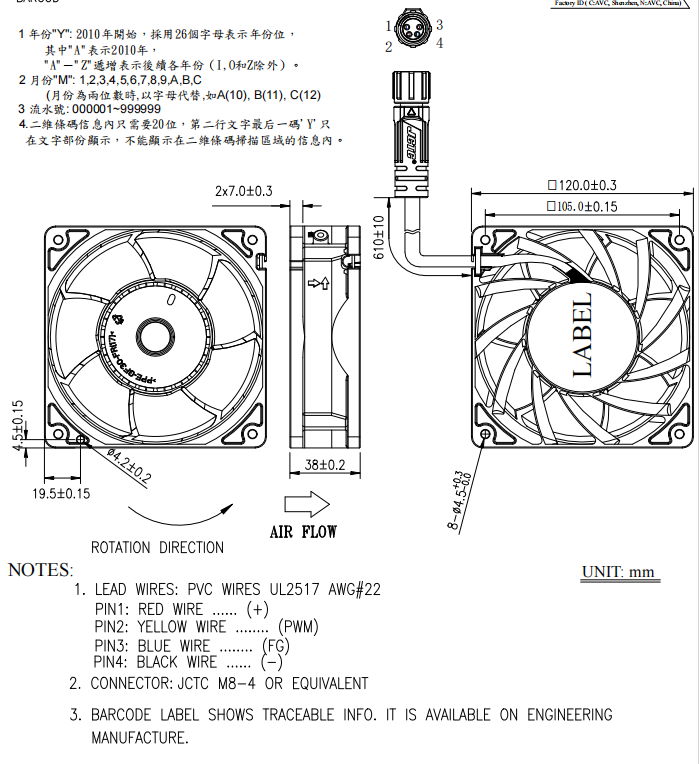

Frame Drawing
